Photoresist chemicals are essential for creating precise patterns on silicon wafers in semiconductor manufacturing, but they come with serious safety challenges. These chemicals, including PGMEA (Propylene Glycol Monomethyl Ether Acetate) and volatile organic compounds (VOCs), can cause skin irritation, respiratory issues, and long-term health risks like cancer. Workers face exposure risks during processes like spin-coating, wafer cleaning, and photoresist stripping. Improper ventilation, high temperatures, and manual handling increase these dangers.
To reduce risks, manufacturers rely on engineering controls like local exhaust ventilation (LEV), automated systems, and dual containment setups. Personal protective equipment (PPE), including chemical-resistant gloves and respirators, is critical. Facilities must also follow strict storage protocols, monitor air quality, and maintain detailed records like Safety Data Sheets (SDS) and exposure logs. Partnering with reliable chemical suppliers ensures consistent quality and safety compliance. By combining these measures, manufacturers protect workers and maintain safe production environments.
Chemical Hazards in Photoresists
Chemical Components and Their Risks
Photoresist formulations rely on several chemicals that can pose health and safety risks during manufacturing. A key ingredient is Propylene Glycol Monomethyl Ether Acetate (PGMEA), commonly used as a solvent in positive photoresists. PGMEA exposure can irritate the skin and eyes, leading to discomfort or inflammation.
Volatile Organic Compounds (VOCs) are another concern. Substances like xylene, toluene, and acetates evaporate at room temperature, increasing the risk of airborne exposure. Breathing in these vapors can cause headaches, dizziness, and irritation of the respiratory system.
Some formulations also contain phenolic compounds, such as phenol, which is highly corrosive. Skin contact with phenol can result in severe chemical burns, and its flammability adds another layer of risk, requiring careful handling and storage.
Chemically amplified resists often include Photoacid Generators (PAGs), which release strong acids when exposed to UV light. Without proper containment, these acids can cause burns and irritate the respiratory system.
Older photoresist formulations may include benzene derivatives, which are known carcinogens. Even minimal exposure to these compounds is a serious health concern, emphasizing the need for continuous monitoring and strict safety protocols.
Health Effects of Chemical Exposure
Workers exposed to these chemicals may experience immediate health effects. For example, contact with PGMEA can lead to skin irritation, burning sensations, redness, and swelling. In some cases, dermatitis can develop, ranging from mild irritation to more severe conditions.
Neurological symptoms, such as headaches, dizziness, and confusion, can also arise from overexposure to VOCs. In more severe cases, workers may experience nausea, difficulty coordinating movements, or other temporary cognitive impairments.
Long-term exposure presents even greater challenges. Chronic contact with benzene derivatives has been linked to blood disorders and increased cancer risks. Prolonged exposure to certain chemicals can also impair reproductive health.
Repeated exposure may lead to sensitization, where workers develop heightened reactions to even minimal contact. This can result in persistent skin conditions like dermatitis or allergic responses, potentially requiring workers to avoid tasks involving photoresist chemicals altogether.
Because many of these effects develop gradually, early detection is crucial. Regular monitoring and preventative measures are essential to minimize risks, as symptoms of overexposure might not appear until significant damage has occurred.
Disclaimer: This content is for informational purposes only. Consult official regulations and qualified professionals before making sourcing or formulation decisions.
High-Risk Areas in Photolithography Processes
Process Stages with Highest Exposure Risks
Wafer Cleaning
This stage involves removing contaminants from silicon wafers using concentrated solvents like acetone and isopropyl alcohol. These chemicals can evaporate quickly, especially in poorly ventilated areas, creating a higher risk of airborne exposure for workers.
Spin-Coating
Spin-coating applies liquid photoresist to wafer surfaces using high-speed equipment. This process can aerosolize solvents like PGMEA, increasing the chance of skin contact and inhalation. The fine droplets and vapors produced during spin-coating add to the exposure risks.
Development Process
During development, alkaline solutions such as tetramethylammonium hydroxide (TMAH) are used to remove unexposed photoresist. TMAH is highly irritating to the skin and eyes, and manual quality checks during this stage can increase direct contact risks.
Photoresist Stripping
This step involves removing residual photoresist using concentrated acids, bases, or organic solvents. The use of heated stripping baths can lead to greater vapor production, raising the risk of inhalation and chemical burns.
Etching Processes
Etching creates additional hazards, especially in plasma etching systems where toxic byproducts form as photoresist materials break down under high-energy conditions. Maintenance tasks during etching, such as cleaning equipment in confined spaces, can expose workers to residual vapors and increase overall risk.
Factors That Increase Safety Risks
Several operational factors can amplify the risks associated with these photolithography stages:
Inadequate Ventilation Systems
Older facilities often lack proper ventilation to effectively remove volatile organic compounds. Without sufficient exhaust systems, vapors can accumulate, especially when multiple processes are running at the same time.
Elevated Ambient Temperatures
Higher temperatures speed up solvent evaporation, increasing the concentration of airborne chemicals. Heat sources like hot plates used in photoresist baking further contribute to vapor production.
Equipment Maintenance Procedures
Maintenance activities, such as cleaning spin-coaters or developer tanks, often require close proximity to concentrated chemical residues. These tasks may involve temporarily disabling safety controls, such as ventilation systems, which heightens exposure risks.
Shift Scheduling Practices
Continuous production schedules can lead to shifts with limited access to safety personnel. Long work hours without sufficient breaks may also result in worker fatigue, increasing the likelihood of safety protocol lapses.
Chemical Mixing and Preparation Activities
Improper handling during the mixing of concentrated photoresist formulations can lead to unexpected chemical reactions or excessive vapor generation. Strict adherence to safety and compatibility protocols is essential to minimize these risks.
Disclaimer: This content is for informational purposes only. Consult official regulations and qualified professionals before making sourcing or formulation decisions.
Solutions to Reduce Photoresist Safety Risks
Engineering Controls and Containment Systems
To manage photoresist safety risks, facilities often rely on advanced engineering controls. For instance, Dual Containment PFA Systems use a pipe-within-a-pipe design made from chemically resistant PFA. These systems are highly effective at capturing leaks and can withstand a wide temperature range, from cryogenic conditions to 500°F (260°C) [1]. Many facilities implement these systems, along with Ultra-High Purity (UHP) PFA components, in critical areas such as chemical delivery networks, especially near personnel or sensitive equipment [1].
Local Exhaust Ventilation (LEV) and fume hoods are another key measure. These systems actively remove hazardous vapors at their source, reducing the risk of inhalation or skin exposure [2][3][4]. For optimal performance, LEV systems must be designed with proper capture velocity and airflow patterns, especially during processes like spin-coating, development, and stripping.
Automated Chemical Delivery Systems further enhance safety by reducing the need for manual handling. These systems dispense precise amounts of photoresist while maintaining containment, which is particularly valuable in high-volume production environments [3][4].
Additional safeguards include dual containment setups with designated collection points for leaks, as well as physical barriers like guards and shields. These measures work alongside personal protective protocols to minimize exposure risks [1][4].
Personal Protective Equipment Requirements
While engineering controls address airborne hazards, Personal Protective Equipment (PPE) is critical for direct chemical contact. Workers should wear chemical-resistant gloves and protective clothing to shield against skin exposure. When selecting PPE, factors like strength, permeability, and chemical resistance must be considered. Cleanroom suits, lab coats, and aprons offer extensive protection against splashes and vapor condensation [7].
Respiratory protection and safety eyewear are equally important. In cases where ventilation alone cannot control airborne concentrations, respirators are necessary [3][4]. Additionally, UV-protective goggles are essential during photolithography processes to shield against ultraviolet radiation. Safety protocols should also discourage direct observation of intense UV light sources [5][6].
To ensure effectiveness, all PPE must be used according to manufacturer instructions and Safety Data Sheets (SDS). Employees should receive training on proper PPE selection, usage, maintenance, and disposal to prevent cross-contamination and maintain continuous protection [5].
Safe Handling and Storage Procedures
Standardized procedures for handling and storing photoresist chemicals are essential for safety. Standard Operating Procedures (SOPs) should cover proper handling and disposal, especially for chemicals that may contain carcinogenic compounds. These procedures should align with the Globally Harmonized System (GHS) for chemical classification and labeling, incorporating hazard pictograms, signal words, and hazard statements [3].
Chemical storage protocols must include clear labeling, proper segregation, and regularly updated SOPs to address changes in manufacturing techniques, particularly for flammable or reactive formulations [3][4].
Emergency preparedness is also vital. Eyewash stations and safety showers should be readily accessible in chemical handling areas. These systems must activate within one second and provide continuous relief for 15 minutes at a flow rate of 20 gallons per minute (76 liters per minute) [3][4]. Regular hazard assessments are crucial, especially since many newer photoresist chemicals lack established permissible exposure limits (PELs) or comprehensive toxicological data [8].
Disclaimer: This content is for informational purposes only. Always consult official regulations and qualified professionals before making sourcing or formulation decisions.
The Semiconductor Health and Cancer Problem
sbb-itb-aa4586a
Monitoring and Compliance Requirements
Once engineering and personal safety measures are in place, maintaining long-term protection when handling photoresists requires continuous monitoring and strict adherence to compliance standards.
Air Quality Monitoring and Exposure Testing
Effective monitoring programs track chemical exposure through personal sampling, area monitoring, and exposure modeling.
- Personal sampling involves equipping workers with devices that measure exposure levels directly at their breathing zones during their shifts. This method provides detailed data on individual risks, especially for tasks like dispensing and developing photoresists, where exposure is typically higher.
- Area monitoring adds another layer of safety by measuring ambient chemical concentrations across the facility. Fixed monitoring stations, strategically placed near photolithography equipment, chemical storage areas, and waste zones, help identify areas where additional controls or safety measures might be needed.
- Exposure modeling predicts potential risks by using calculations based on process details and ventilation rates. While this approach is valuable for anticipating hazards with new processes or chemicals, it’s essential to validate these predictions with real-world air sampling to ensure accuracy.
Real-time monitoring systems play a critical role by immediately alerting staff when airborne contaminants, such as volatile organic compounds (VOCs), exceed safe limits. These systems not only support quick responses to unsafe conditions but also log data trends, making it easier to detect and resolve equipment or process inefficiencies.
The detailed data gathered from these methods is essential for regulatory compliance and supports thorough documentation efforts.
Regulatory Standards and Required Documentation
Beyond monitoring, adhering to regulatory standards and maintaining accurate documentation are key to ensuring workplace safety.
OSHA Permissible Exposure Limits (PELs) establish legal thresholds for chemical exposure in the workplace. However, many photoresist chemicals lack specific OSHA PELs. In these cases, facilities often refer to ACGIH Threshold Limit Values (TLVs), which provide science-based exposure guidelines developed by experts.
Newer photoresist formulations can present unique challenges, as toxicological data for all components may not yet be available. In such cases, facilities must adopt conservative safety measures, relying on manufacturer guidance and Safety Data Sheets (SDS) for interim protocols. Exposure limits and safety protocols should be updated as new research becomes available.
Comprehensive documentation is another cornerstone of compliance. Facilities must maintain up-to-date SDS for all photoresist chemicals, detailing hazards, exposure controls, and emergency procedures. These documents should be easily accessible to workers and updated promptly when formulations or safety information changes.
Recordkeeping requirements include maintaining exposure and training records to support compliance and ongoing safety efforts. OSHA mandates that exposure records be retained for 30 years, while medical records must be kept for the duration of an employee’s tenure plus 30 years. Regular audits can help ensure that all documentation remains complete and accurate.
- Air monitoring reports: These reports detail exposure assessments, including sampling methods, results, and corrective actions for any instances where exposure limits were exceeded. They serve as evidence of a facility’s commitment to worker safety and can be invaluable for regulatory inspections and insurance purposes.
- Training records: These demonstrate that workers are properly educated on chemical hazards and safety procedures. Records should include proof of initial training, annual refreshers, and specialized training for new chemicals or processes. Competency assessments ensure workers can effectively use PPE, follow emergency protocols, and recognize signs of chemical exposure.
Disclaimer: This content is for informational purposes only. Always consult official regulations and seek advice from qualified professionals when making decisions about sourcing or formulation.
Importance of Reliable Chemical Sourcing
Photoresist safety begins with dependable chemical sourcing. Sourcing from trusted suppliers is crucial for ensuring worker safety, meeting regulatory requirements, and maintaining consistent operations in semiconductor manufacturing.
Using substandard chemicals or receiving incomplete documentation can lead to serious issues, such as increased safety hazards, process disruptions, and regulatory violations. When photoresist chemicals lack proper purity verification or complete safety documentation, facilities face heightened risks of exposure and compliance challenges.
Guaranteeing chemical purity and thorough documentation is essential for establishing and maintaining effective safety protocols.
Chemical Purity and Documentation Requirements
In photolithography, reliable sourcing is key to minimizing risks. Chemical purity acts as a critical safeguard against unexpected safety threats during processing. Impurities in photoresist formulations can cause volatile reactions, change chemical behavior, and introduce toxicological risks that standard safety measures may not anticipate.
Certificates of Analysis (COAs) are essential for verifying chemical composition and purity. Without them, facilities cannot fully evaluate potential risks or develop appropriate safety measures.
Suppliers must go beyond providing standard Safety Data Sheets (SDS) by offering detailed hazard information, including chemical interactions, stability data, and handling guidelines. This enables facilities to create more targeted safety protocols.
Consistency in chemical composition, supported by traceable batch records, is vital for quick responses to safety concerns. For photoresist chemicals, even small variations in formulation can significantly affect properties like volatility, reactivity, or toxicity.
These rigorous requirements highlight the importance of working with specialized chemical suppliers who can meet these high standards.

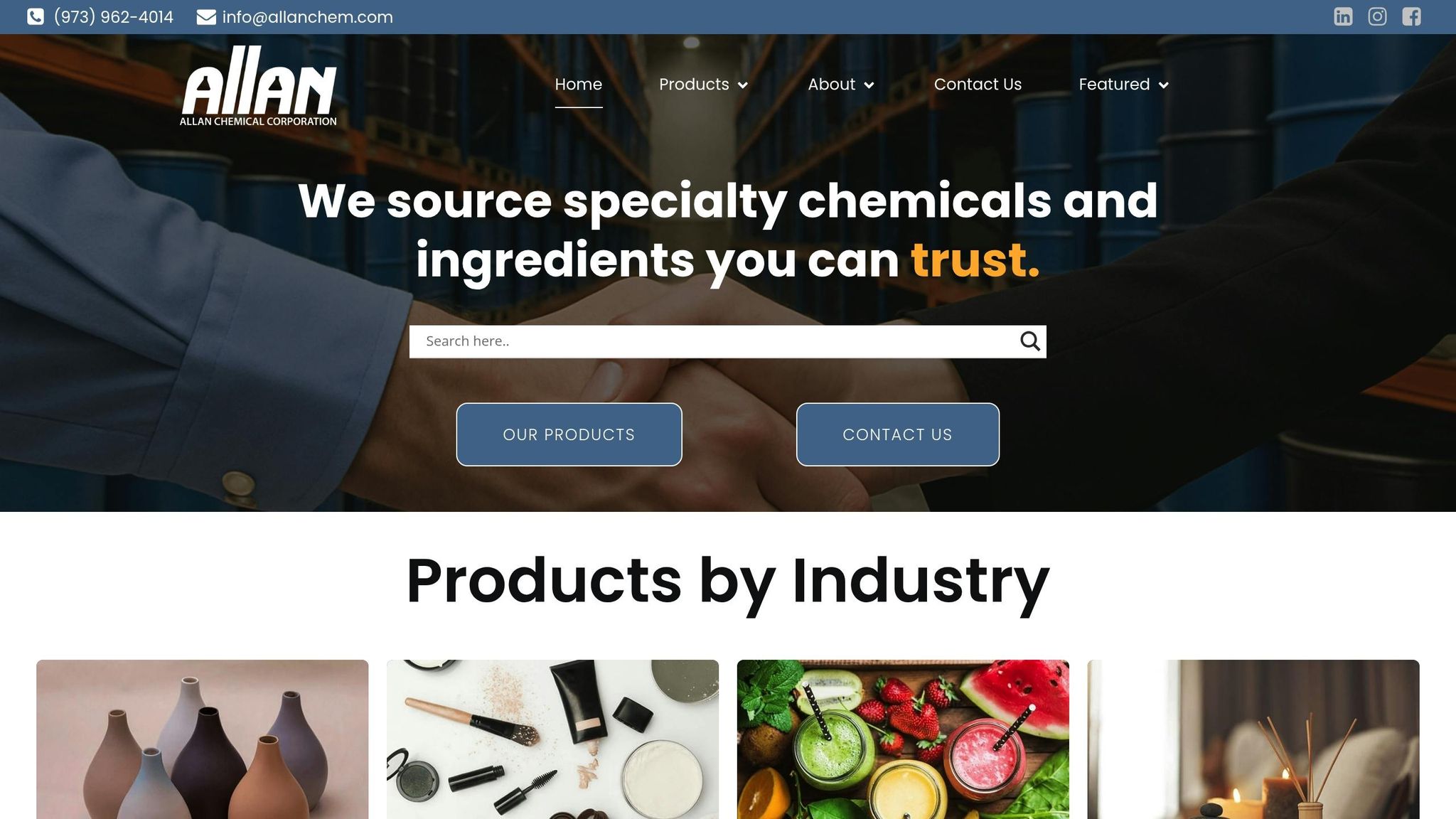

Allan Chemical Corporation‘s Safety Standards
Specialized suppliers are instrumental in upholding safety standards throughout semiconductor manufacturing. With over 40 years of experience in regulated industries, Allan Chemical Corporation prioritizes sourcing high-quality, fully documented photoresist chemicals.
Their technical-grade solutions meet the strict purity standards required for semiconductor applications. Through strong supplier partnerships, they ensure access to premium photoresist chemicals, complete with detailed COAs and comprehensive safety data to support compliance efforts.
Just-in-time delivery further enhances safety by reducing the risks associated with long-term chemical storage. Reliable and timely deliveries help facilities minimize on-site inventory, lowering exposure to storage-related hazards while maintaining smooth operations. This is particularly critical for photoresist chemicals, which may degrade over time or require specific storage conditions.
Allan Chemical Corporation emphasizes building relationships over transactions, offering ongoing technical support for documentation and usage inquiries. This collaborative approach ensures facilities receive the precise safety information and chemical specifications needed to maintain safe handling practices.
Their ability to provide custom sourcing solutions addresses the unique demands of photolithography. Whether specialized formulations or specific purity grades are required, Allan Chemical Corporation delivers tailored solutions without compromising on quality or safety.
Disclaimer: This content is for informational purposes only. Always consult official regulations and seek advice from qualified professionals when making decisions about sourcing or formulation.
Conclusion: Safe Photoresist Handling Practices
Handling photoresists safely requires identifying hazards early, implementing multiple layers of control, and sourcing chemicals from trusted suppliers. Chemicals like benzene, phenol, xylene, and PGMEA carry significant risks, making it critical to prioritize worker safety and comply with regulations through vigilant management.
Recognizing hazards early helps facilities put effective controls in place before chemicals are introduced into the workplace. This approach significantly reduces the chances of exposure and minimizes long-term health risks. Using engineering controls, personal protective equipment (PPE), proper handling protocols, emergency response systems, and real-time monitoring creates a safety net that protects workers throughout the manufacturing process. These steps also ensure compliance with regulatory requirements and support detailed record-keeping.
Maintaining thorough documentation, such as exposure records, Safety Data Sheets (SDS), and Certificates of Analysis (COAs), is key for meeting OSHA standards and environmental regulations. Accurate records, combined with routine audits, streamline compliance efforts and reinforce ongoing risk management.
The foundation of any safety plan is reliable chemical sourcing. Partnering with dependable suppliers ensures consistent quality and reduces the risk of unforeseen hazards entering the workplace. This collaboration strengthens safety practices across the supply chain.
As semiconductor manufacturing continues to advance, staying proactive is essential. Regular risk assessments, updated training programs, and adapting to new regulatory requirements all help facilities address emerging safety challenges. By focusing on hazard detection, advanced safety measures, and strong supplier relationships, organizations can create a culture of safety that evolves alongside industry demands.
Disclaimer: This content is for informational purposes only. Always consult official regulations and seek advice from qualified professionals when making decisions about sourcing or formulation.
FAQs
What health risks are associated with exposure to PGMEA and other volatile organic compounds in photoresist chemicals?
Exposure to PGMEA and other volatile organic compounds (VOCs) found in photoresist chemicals can lead to various health concerns. Short-term exposure might cause skin and eye irritation, respiratory issues, headaches, dizziness, or even nausea. Breathing in VOCs can also affect the central nervous system, leading to symptoms like fatigue or trouble focusing.
Long-term or high-level exposure poses even greater risks, including potential damage to the liver and kidneys, reproductive health concerns, and chronic respiratory problems. To reduce these dangers, it’s crucial to ensure proper ventilation, use personal protective equipment (PPE), and strictly adhere to safety guidelines when working with these substances.
How can semiconductor manufacturers ensure worker safety when handling photoresist chemicals without OSHA exposure limits?
To ensure the safety of workers handling photoresist chemicals without specific OSHA Permissible Exposure Limits (PELs), semiconductor manufacturers should prioritize a comprehensive safety strategy. Begin with thorough hazard assessments to pinpoint potential risks and vulnerabilities in the workplace. Implement engineering controls, such as effective ventilation systems, to minimize airborne exposure. Additionally, require the use of personal protective equipment (PPE) – like gloves, goggles, and respirators – to prevent direct contact with these substances.
Whenever feasible, replace hazardous chemicals with less harmful substitutes. Establish and adhere to strict safety protocols that align with established industry guidelines. Regular training sessions are essential to keep employees informed about these safety measures and ensure proper adherence. Consistently monitor exposure levels and workplace conditions to maintain compliance and protect worker health over time.
How do reliable chemical suppliers help ensure safe handling of photoresist chemicals in semiconductor manufacturing?
Reliable chemical suppliers play a key role in ensuring safety within semiconductor manufacturing. They supply top-tier, precisely formulated photoresist chemicals that meet the stringent safety standards of the industry. By providing consistent and dependable products, these suppliers help manufacturers reduce the risks tied to chemical exposure and workplace accidents.
Beyond just supplying chemicals, these partners provide essential resources such as Safety Data Sheets (SDS), expert technical advice, and compliance support. These tools are vital for the correct handling, storage, and disposal of photoresist chemicals, safeguarding both workers’ well-being and the environment. Working with a trustworthy supplier reinforces safety measures at every stage of the manufacturing process.
