Filler dispersion in elastomers is the process of integrating nano-scale particles, such as Carbon Black or Silica, into a rubber matrix to improve material properties like stiffness, durability, and resistance to wear. This involves three steps: wetting the filler with the elastomer, breaking down filler agglomerates, and distributing filler aggregates evenly. Proper dispersion significantly impacts performance, influencing behaviors like the Payne Effect (stiffness changes under strain) and Mullins Effect (stress-softening after high loads).
Key points include:
- Hydrodynamic Forces: Shear during mixing breaks apart agglomerates, improving stiffness and uniformity.
- Rubber-Filler Interactions: Strong polymer-filler bonds form a rigid "bound rubber" layer, enhancing reinforcement.
- Network Formation: Filler particles form a connected structure at the percolation threshold, boosting mechanical properties.
- Dynamic Properties: Excessive filler can cause issues like the Payne Effect, where stiffness drops under strain.
- Mixing Techniques: Mechanical shear and chemical surface treatments (e.g., silane coupling agents) ensure even dispersion.
Uniform filler dispersion reduces weak points in elastomers, directly improving performance in applications like tires, seals, and vibration dampeners. Effective dispersion techniques combine precise mechanical mixing with chemical surface treatments, allowing manufacturers to achieve consistent results.

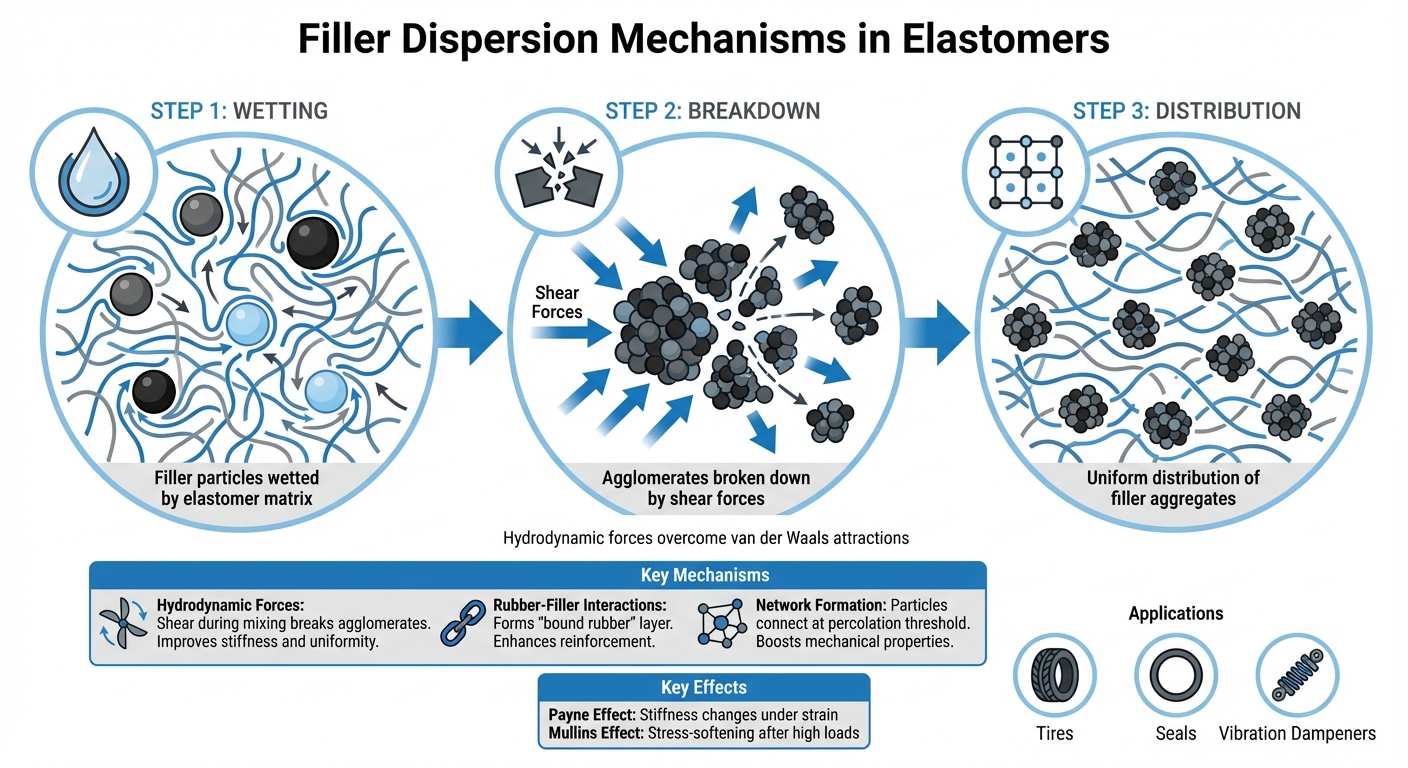

Three-Step Filler Dispersion Process in Elastomers
Filler Dispersion: The Hidden Factor That Makes or Breaks Rubber Performance
How Filler Dispersion Works in Elastomers
Filler dispersion involves breaking apart agglomerates using applied shear, where the combination of residence time and shear rate determines the quality of the dispersion. Higher shear strains fragment large agglomerates into smaller aggregates, which then distribute more uniformly within the elastomer matrix. This process occurs as hydrodynamic forces counteract the cohesive van der Waals attractions between particles. During mixing, manufacturers use mechanical shear to achieve the desired dispersion state[3]. Below, we examine how hydrodynamic forces and rubber–filler interactions influence this process.
Hydrodynamic Effect on Particle Movement
The Guth equation, E = E₀(1 + 0.67fΦ + 1.62f²Φ²), illustrates how rigid filler particles increase the stiffness of a composite. Here, E represents the modulus, f is the particle aspect ratio, and Φ is the filler volume fraction[5]. The shape of the filler plays a crucial role – anisotropic particles, such as rod-shaped carbon nanotubes or layered nanoplatelets, can align during processing to provide directional reinforcement. Additionally, fillers with intricate, branched aggregate structures trap occluded rubber within their voids, effectively increasing the filler volume and, consequently, the stiffness of the composite[4][6].
Rubber-Filler Interactions and Bound Rubber Formation
Strong interactions between filler surfaces and polymer chains result in the formation of a rigid, immobilized layer of rubber at the interface, referred to as bound rubber. This layer, which behaves like glass, cannot be removed via solvent extraction and becomes an integral part of the material’s reinforcing structure. A notable study by Brennan, Jermyn, and Boonstra demonstrated that heat-treating ISAF-grade carbon black at 3,000°C for one hour in styrene-butadiene rubber (SBR) reduced bound rubber content from 34.4% to 5.6%. This reduction also led to a significant drop in stress at 300% strain, from 14.5 MPa to 3.5 MPa[6]. To account for bound rubber in practical applications, engineers often estimate the effective particle diameter to be about 1.5 times larger than the actual primary particle diameter[3].
However, excessive bonding between the filler and polymer can have drawbacks. D.C. Edwards of Polysar Ltd. noted:
Only a minor amount of strong bonding is necessary or desirable, such that polymer/filler slippage can occur, under stress, over most of the interfacial area[2].
This controlled slippage allows stress to distribute more evenly and prevents void formation, ultimately improving the material’s durability under repeated loading. Striking the right balance between bonding and interfacial slippage is essential for optimizing stress distribution and enhancing elastomer performance.
